Building Products

House Framing

House framing

Product available in: Qld

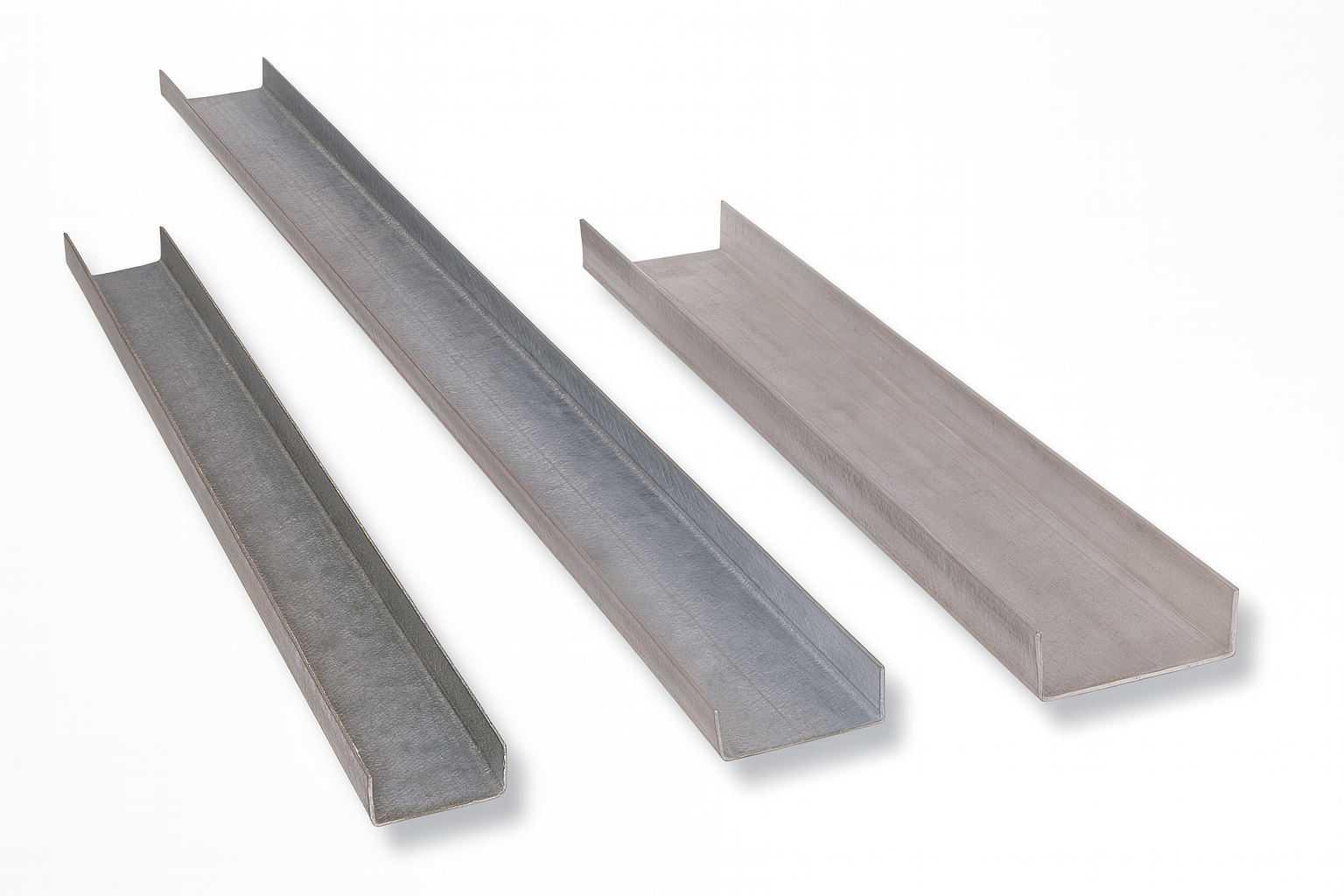

Apex can provide all your steel framing requirements including stud, plate & noggin,
roof & ceiling battens, top hats & purlins, stiffened top plate, trimmer angles as well as steel strap bracing.

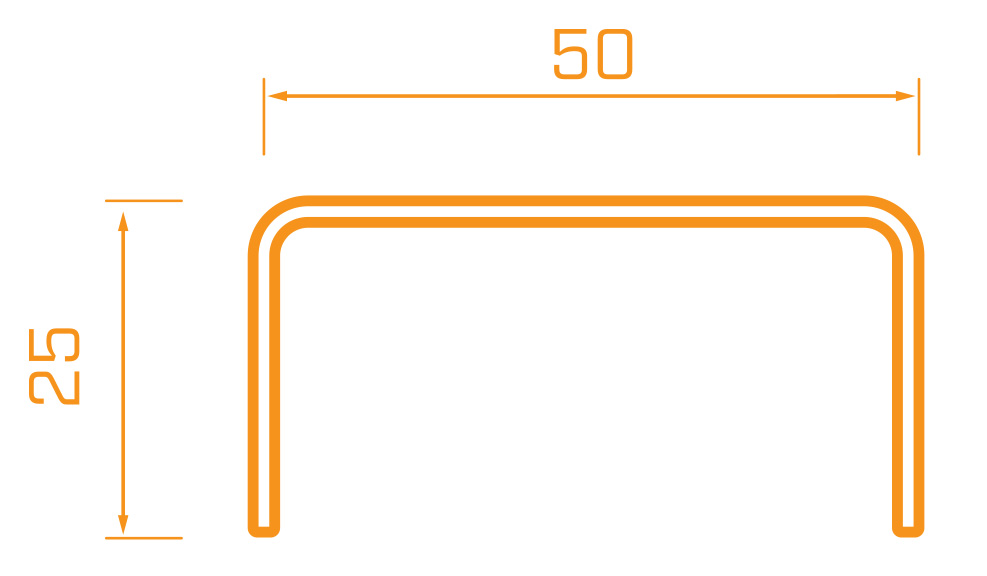

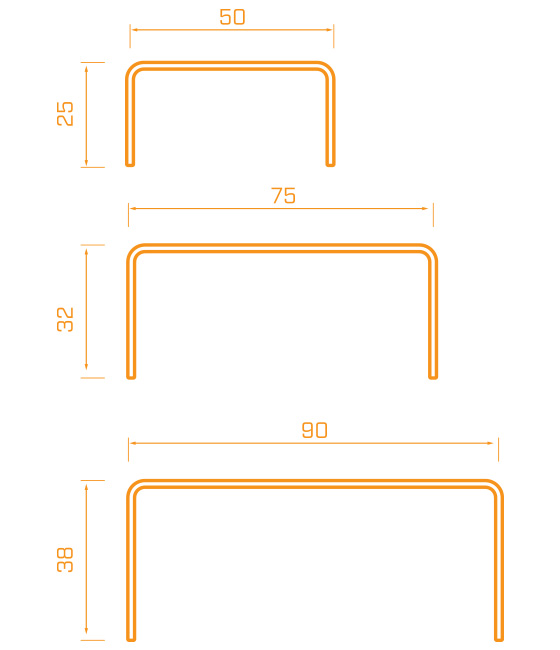

50mm mini stud50mm Mini Stud
A versatile light weight and economical section perfect for internal partitioning shed
framing and a range of other applications. Standard material is 1mm high tensile
galvanised steel although other gauges and finishes are available on request.

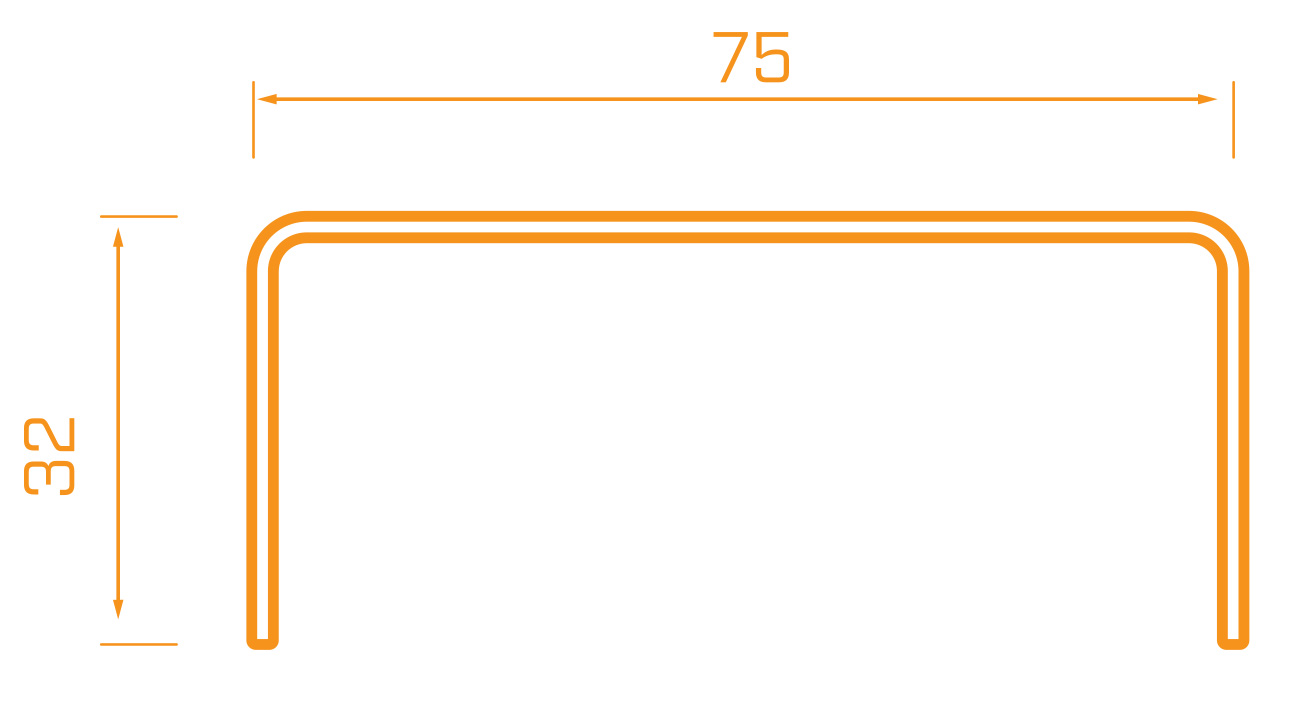

75mm mini stud75mm Mini Stud
Our standard house framing section is available in gauges from 0.8mm to 1.6mm
Galvanised and Truecore high tensile steel to suit normal through to cyclonic
conditions. We can supply stud, plate and noggin cut to length with the option of
pre-punched holes if required. The 75mm industry standard section is optimised to
provide maximum usable floor space together with the strength and benefits only
provided by steel.

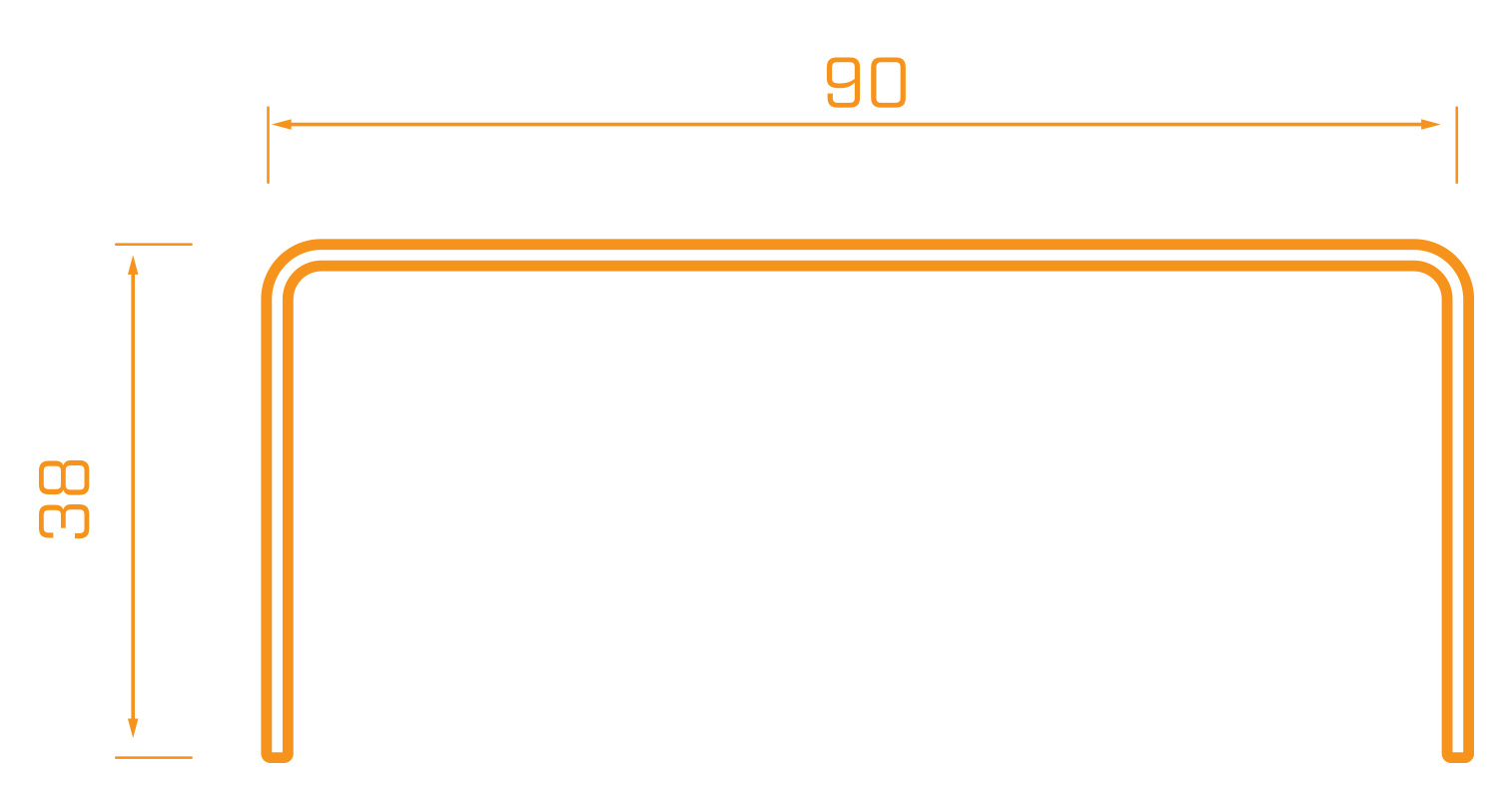

90mm mini stud90mm Mini Stud
Available in 1mm to 1.6mm high tensile Galvanised or Truecore steel for those who
prefer to work with or have designs based on this larger section size. Also available cut to length in stud plate and noggin with optional pre-punched holes if required.

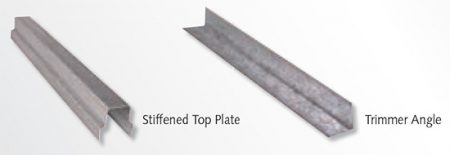

Other Framing Sections
Apart from Z100 sections for rafetrs, Apex also manufacture Stiffened Top Plate and Hip Rafter channels suitable for use without 75mm standard stud framing.

Enquire about Product

  • More Info

ADVERSE CONDITIONS
If material is to be used within 1km of salt marine, industrial or corrosive environments please contact our Apex sales staff.

WARRANTIES
Our products are supported by Bluescope Steel Limited and a full warranty is available.

LENGTHS / TRANSPORT
Apex Building Products can custom cut lengths to your requirements. Due to transport restrictions it is advisable to check with our office the maximum length.

HANDLING
Care should be taken at all times when handling Corrugated. Packs must be kept dry and stored above ground level, should the sheets become wet separate immediately and individually wipe and place in an area to dry.

COMPATIBILITY
ZINCALUME® steel sheeting is compatible with most roofing products. It is NOT recommended to use lead flashing/nails, copper or copper alloy materials with or in run-off situations.

CUTTING
Apex Building Products provides this service, however sheets may be cut using a power saw with a metal cutting blade. COLORBOND® steel sheeting must be cut with the coloured surface facing the ground. Ensure that no hot particles or debris come into contact with the COLORBOND® .

CLEAN UP
To prevent premature corrosion at the completion of each day ensure the sheeting area is cleared of all debris, including nails, rivets, rags and all cutting or drilling filings.

DELIVERY
Apex Building Products delivers to site within 1 to 2 days. To prevent any damage we require suitable arrangements to be made for unloading. Unloading by crane, ensure the load is evenly spread, if crane unavailable adequate manpower is required.
