Long Products

Merchant Bar

Product available in: Sa, NT

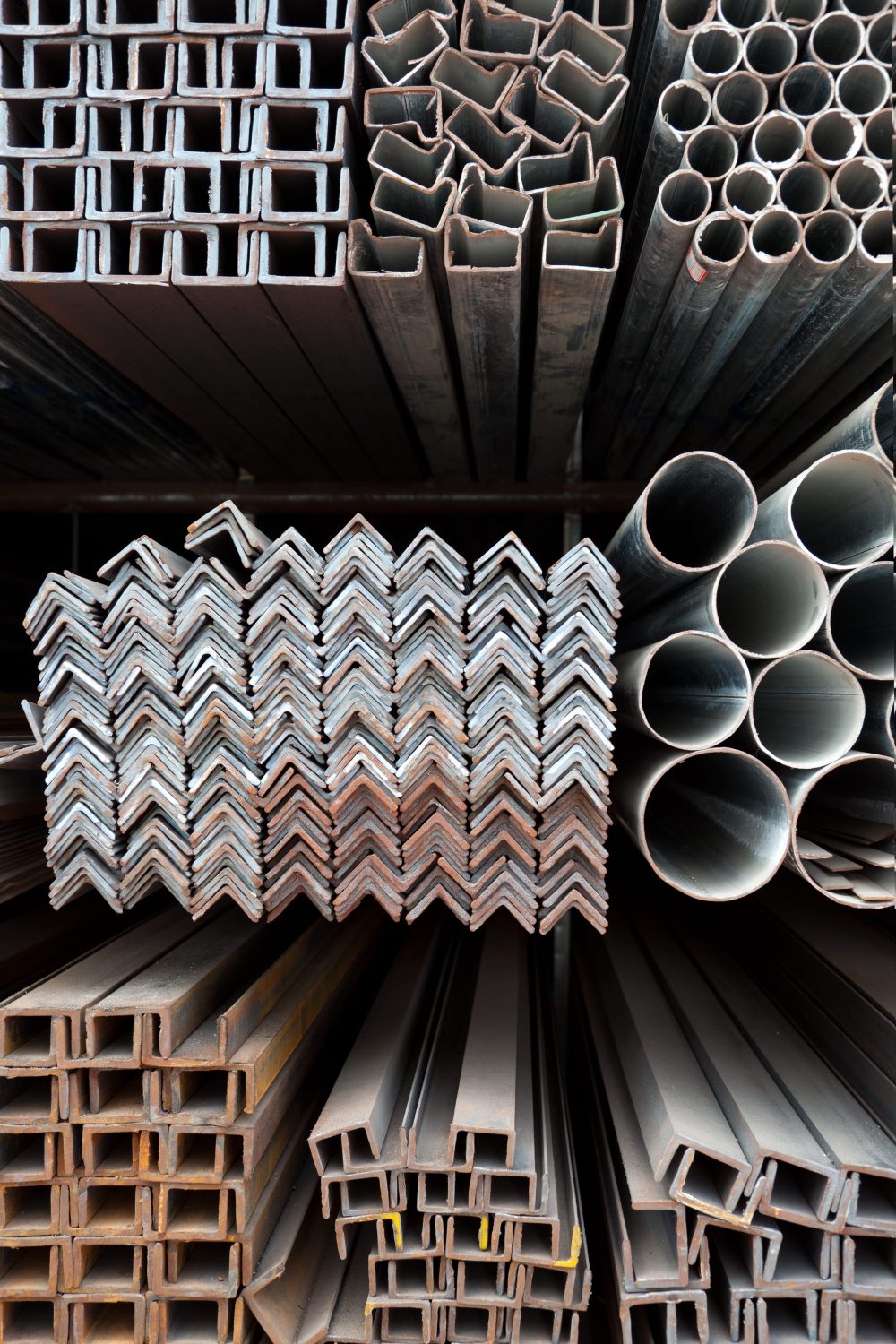

Apex Steel Supplies Pty Ltd range of merchant bars and structural sections are broken down into the following categories: Flat bars, round and square bars, equal and unequal angles and galv. sections.

A large range of our merchant bar products are procured from mills that have ACRS accreditation / certification.

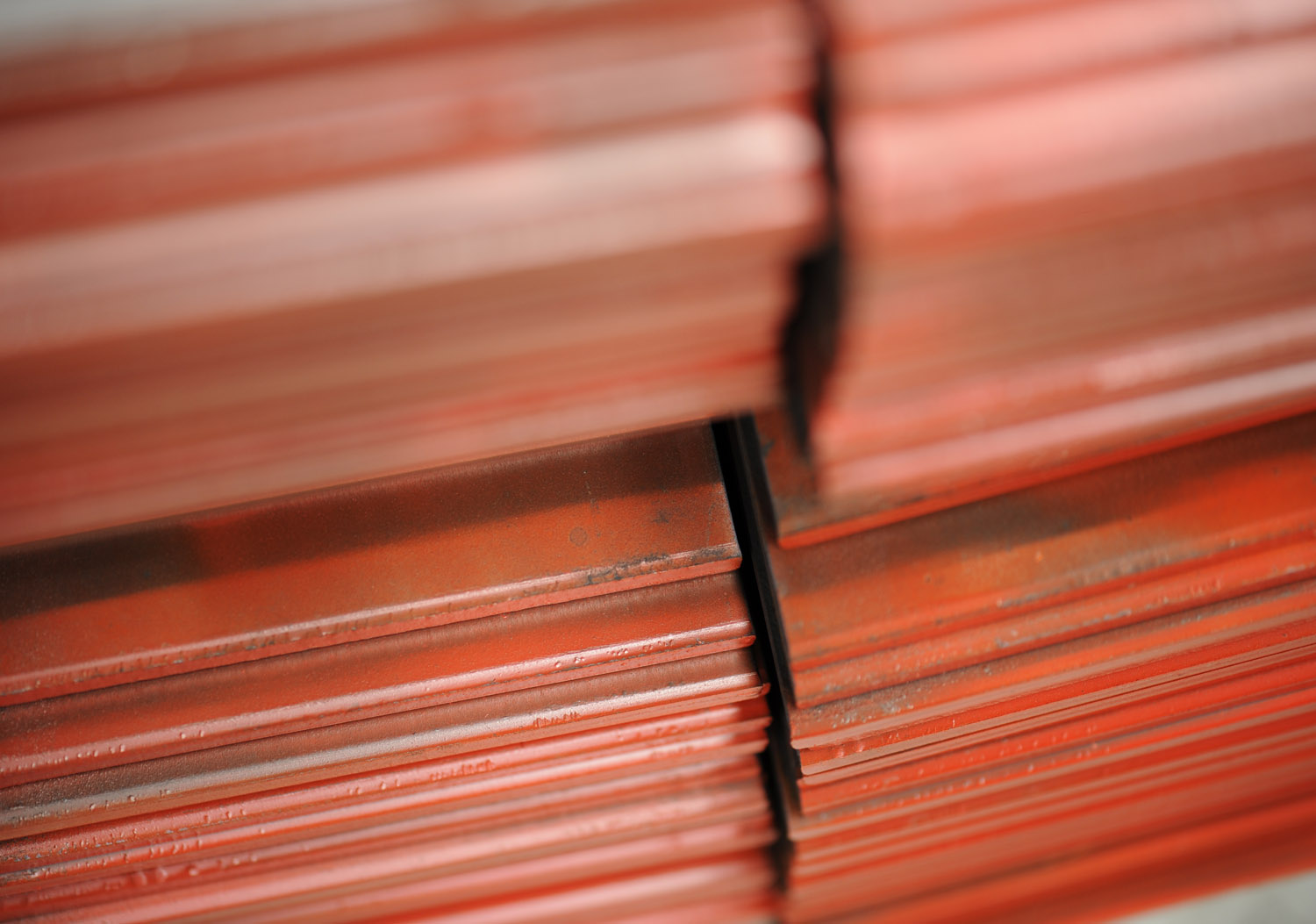

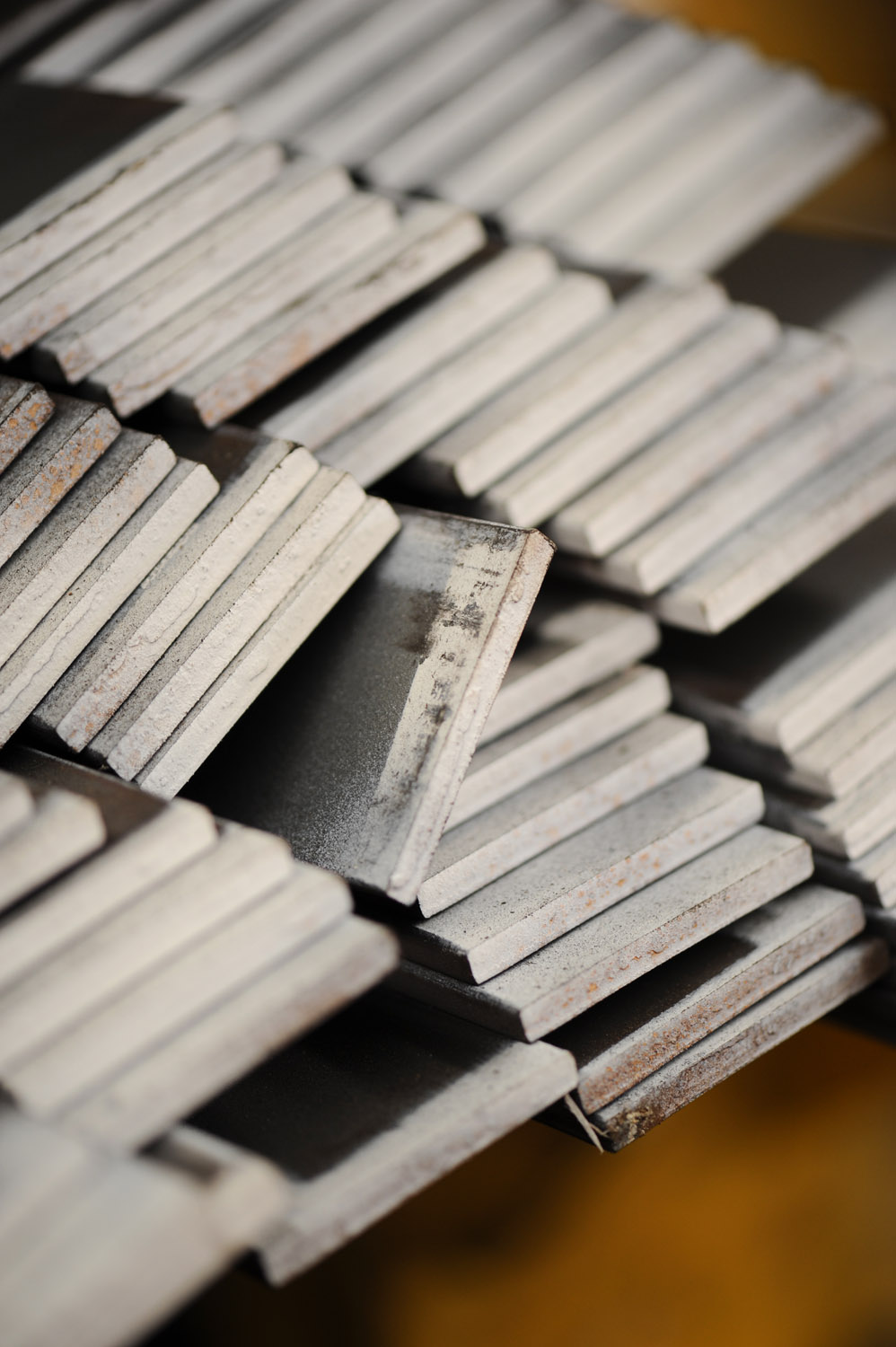

FLAT BAR
Specification: AS/NZS 3679.1 2016 – Grade 300
Size Range: 20×3 – 300×25
Length range – 6000mm

ROUNDS
Specification: AS3679.1 2016 – Grade 300
Size Range – 6mm – 45mm
Length Range – 6000mm

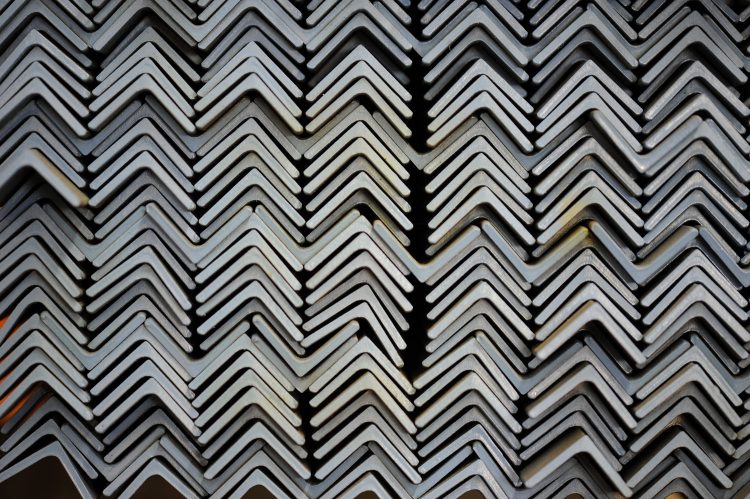

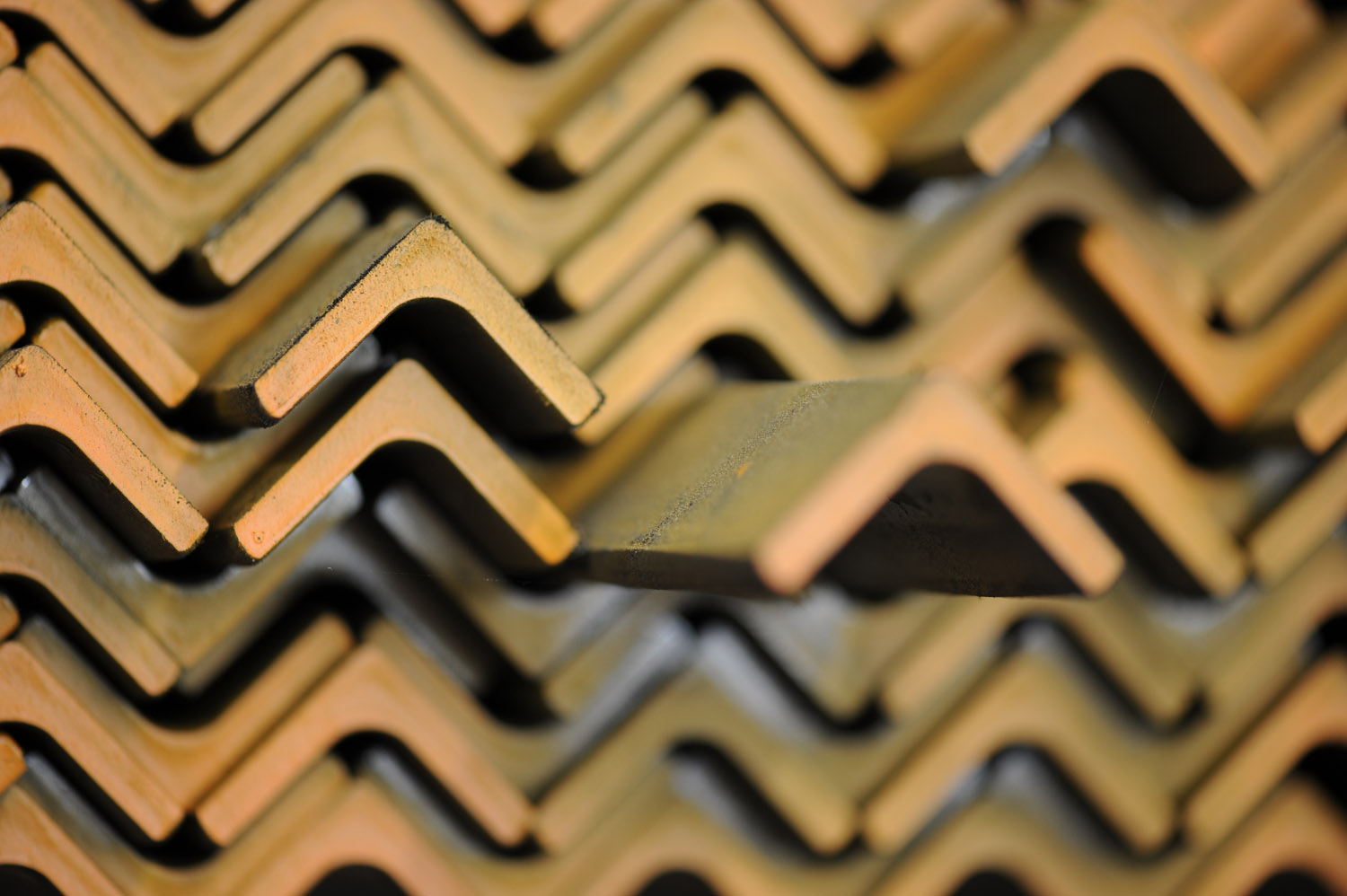

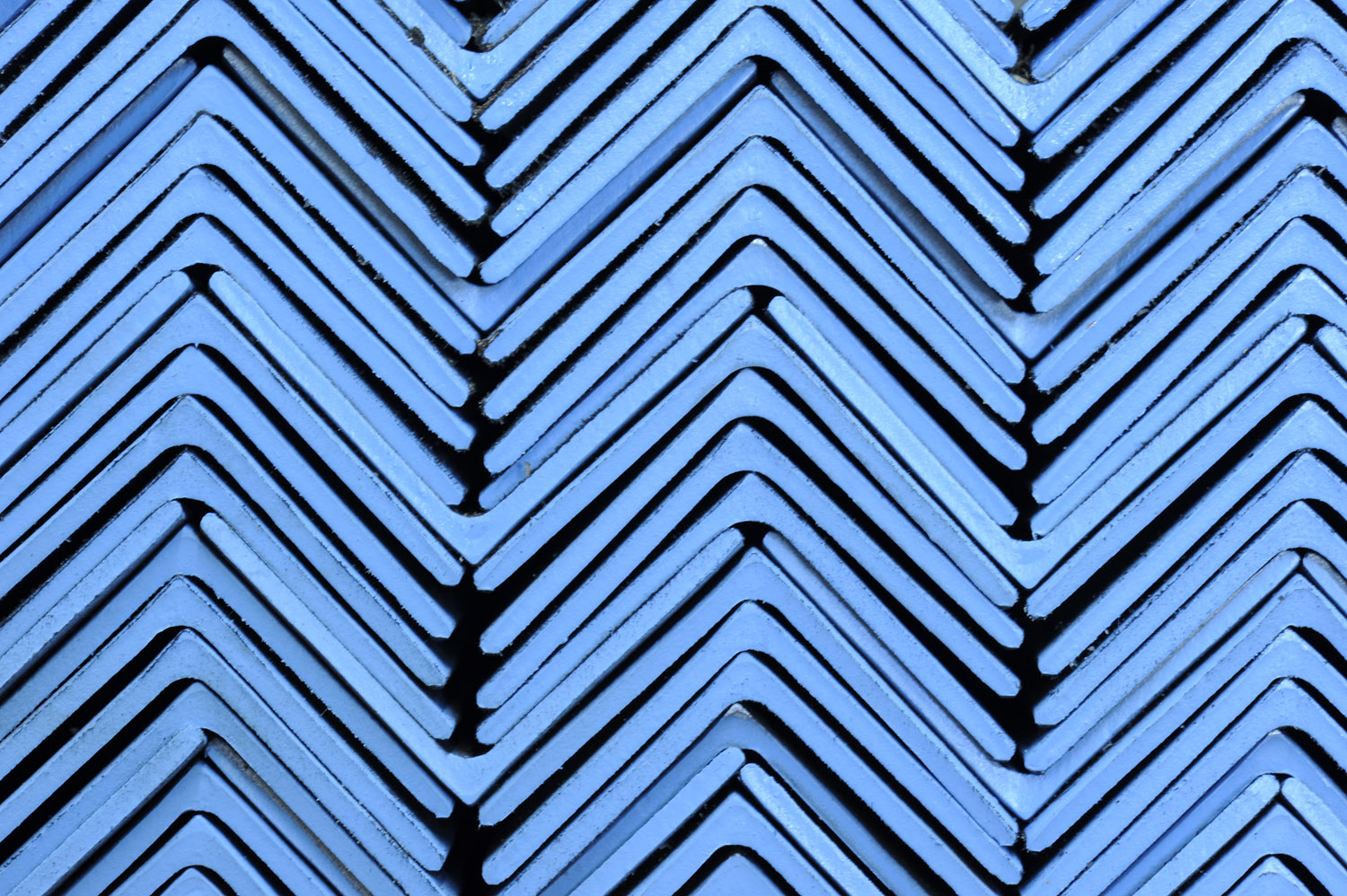

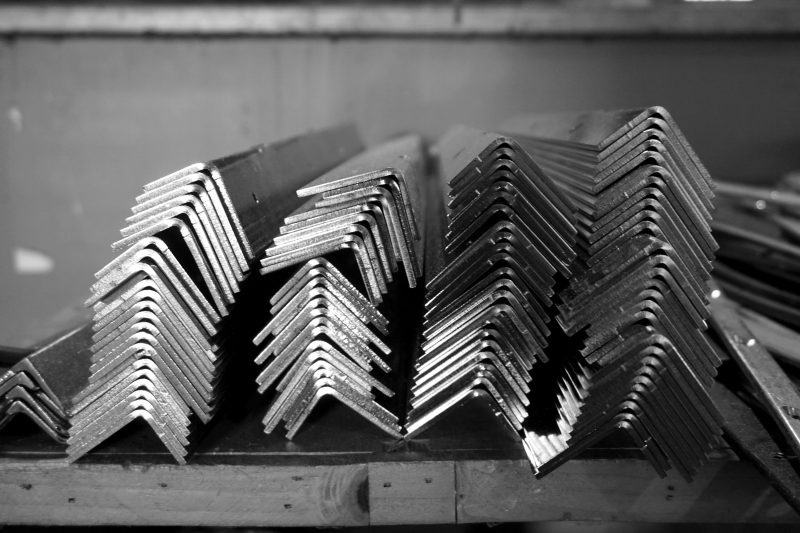

EQUAL  ANGLES
Specification: AS3679.1 2016 – Grade 300
Size Range: 20x20x3 – 200x200x16mm
Length Range: 7500mm, 9000mm & 12000mm

UNEQUAL  ANGLES
Specification: AS/NZS 3679.1 – Grade 300
Size Range: 75x50x5mm – 150x100x12mm
Length Range: 7500mm, 9000mm & 12000mm

GALVANIZED ANGLE
Size Range: 30x30x2.5 – 75x75x5mm
Length Range: 6000mm & 9000mm

FLAT BAR GALVANIZED
Size Range: 50×4 – 100×5
Length Range: 6000mm

Enquire about Product

  • More Info

ADVERSE CONDITIONS
If material is to be used within 1km of salt marine, industrial or corrosive environments please contact our Apex sales staff.

WARRANTIES
Our products are supported by Bluescope Steel Limited and a full warranty is available.

LENGTHS / TRANSPORT
Apex Building Products can custom cut lengths to your requirements. Due to transport restrictions it is advisable to check with our office the maximum length.

HANDLING
Care should be taken at all times when handling Corrugated. Packs must be kept dry and stored above ground level, should the sheets become wet separate immediately and individually wipe and place in an area to dry.

COMPATIBILITY
ZINCALUME® steel sheeting is compatible with most roofing products. It is NOT recommended to use lead flashing/nails, copper or copper alloy materials with or in run-off situations.

CUTTING
Apex Building Products provides this service, however sheets may be cut using a power saw with a metal cutting blade. COLORBOND® steel sheeting must be cut with the coloured surface facing the ground. Ensure that no hot particles or debris come into contact with the COLORBOND® .

CLEAN UP
To prevent premature corrosion at the completion of each day ensure the sheeting area is cleared of all debris, including nails, rivets, rags and all cutting or drilling filings.

DELIVERY
Apex Building Products delivers to site within 1 to 2 days. To prevent any damage we require suitable arrangements to be made for unloading. Unloading by crane, ensure the load is evenly spread, if crane unavailable adequate manpower is required.
