RECOMMENDED FIXING METHOD
All fasteners must comply with AS 3566 – Class .
Fix with 4 fasteners per support.
Fixing to Steel
Roof – crest fix – Autotek 50mm Hex head with seal washer or RoofZips® M6 – 11 x 50mm Hex head / Seal head with seal washer
Wall – pan fix – Tek 10 x 16mm Hex head with seal washer
Fixing to Timber
Roof – crest fix – RoofZips® M6 – 11 x 65mm Hex head / Seal head with seal washer
Wall – pan fix – Roof Zip 12 x 25mm Hex head with seal washer
Both ZINCALUME® and COLORBOND® has G550 base material (550Mpa minimum yield stress) with AZ150 coating, in accordance with AS1397. Please contact Apex sales staff for our extensive range of colours and thicknesses.

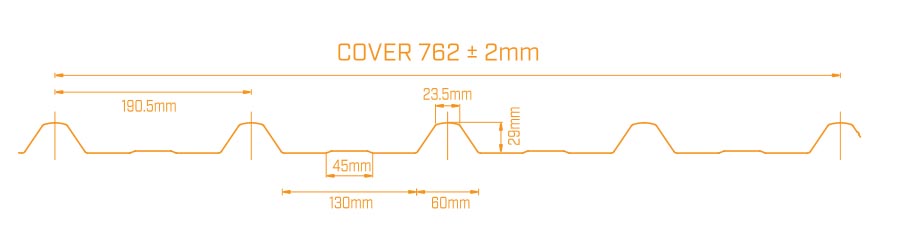

|BMT||MASS KG/M2||COVER (MM)||ROOF INTERNAL||ROOF END||WALL INTERNAL||WALL END|
If material is to be used within 1km of salt marine, industrial or corrosive environments please contact our Apex sales staff.
Our products are supported by Bluescope Steel Limited and a full warranty is available.
LENGTHS / TRANSPORT
Apex Building Products can custom cut lengths to your requirements. Due to transport restrictions it is advisable to check with our office the maximum length.
Care should be taken at all times when handling Apclad Hi-ten. Packs must be kept dry and stored above ground level, should the sheets become wet separate immediately and individually wipe and place in an area to dry.
ZINCALUME® steel sheeting is compatible with most roofing products. It is NOT recommended to use lead flashing/nails, copper or copper alloy materials with or in run-off situations.
Apex Building Products provides this service, however sheets may be cut using a power saw with a metal cutting blade. COLORBOND® steel sheeting must be cut with the coloured surface facing the ground. Ensure that no hot particles or debris come into contact with the COLORBOND® .
To prevent premature corrosion at the completion of each day ensure the sheeting area is cleared of all debris, including nails, rivets, rags and all cutting or drilling filings.
Clean soft soled shoes should be worn when walking on sheets.
Apex Building Products delivers to site within 1 to 2 days. To prevent any damage we require suitable arrangements to be made for unloading. Unloading by crane, ensure the load is evenly spread, if crane unavailable adequate manpower is required.
