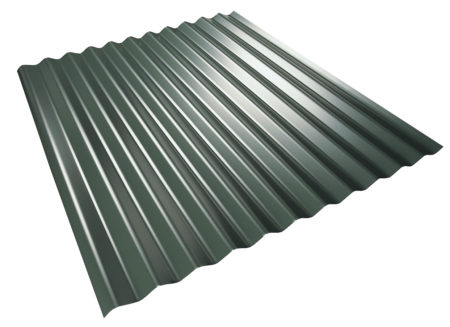

Apex Corrugated is a well recognised Australian product, ideal for both traditional and contemporary roofing applications.

Made from Hi-Tensile steel this profile whilst strong is also lightweight which minimises sheet damage.

Apex Corrugated is pierce fixed which ensures easy fixing by the conventional method. To ensure maximum weather protection our Corrugated has a 1.5 rib overlap.

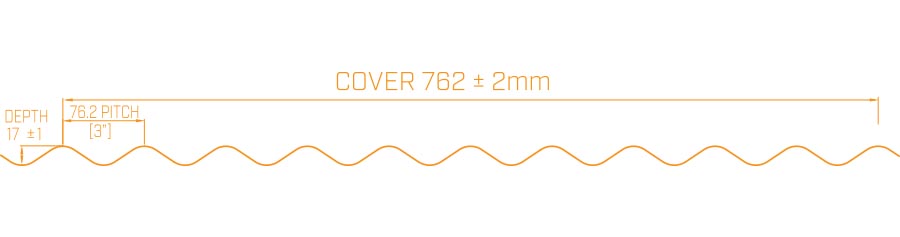

Apex Corrugated is available custom cut to length and is ideal for both roof and wall applications. The wide cover (762mm) allows for quick installation, saving on both materials and labour. This versatile profile can be used on a minimum roof pitch of 5 degrees (1 in 12).

Rib Height: 17mm

Enquire about Product

Download Data Sheet

Use fasteners complying with AS 3566 Class 3.
Roofing into Timber Battens: Use 12 Gauge x 50mm Hex Head T17 screws
Roofing in Steel Purlins: Use 12 Gauge x 35mm Hex Head Screws (approx 6 per m2)
Wall Cladding into Timber Battens: Use 12 Gauge x 25mm Hex Head screws
Wall Cladding into Steel Purlins: Use 10 Gauge x 16mm Hex Head screws (approx 5 per m2)

Both ZINCALUME® and COLORBOND® has G550 base material (550Mpa minimum yield stress) with AZ150 coating, in accordance with AS1397. Please contact Apex sales staff for our extensive range of colours and thicknesses.

Maximum Span Tables - (Approx Only)
BMTMASS KG/M2Cover (MM)Roof InternalRoof EndWall InternalWall End

If material is to be used within 1km of salt marine, industrial or corrosive environments please contact our Apex sales staff.

Our products are supported by Bluescope Steel Limited and a full warranty is available.

Apex Building Products can custom cut lengths to your requirements. Due to transport restrictions it is advisable to check with our office the maximum length.

Care should be taken at all times when handling Corrugated. Packs must be kept dry and stored above ground level, should the sheets become wet separate immediately and individually wipe and place in an area to dry.

ZINCALUME® steel sheeting is compatible with most roofing products. It is NOT recommended to use lead flashing/nails, copper or copper alloy materials with or in run-off situations.

Apex Building Products provides this service, however sheets may be cut using a power saw with a metal cutting blade. COLORBOND® steel sheeting must be cut with the coloured surface facing the ground. Ensure that no hot particles or debris come into contact with the COLORBOND® .

To prevent premature corrosion at the completion of each day ensure the sheeting area is cleared of all debris, including nails, rivets, rags and all cutting or drilling filings.

Apex Building Products delivers to site within 1 to 2 days. To prevent any damage we require suitable arrangements to be made for unloading. Unloading by crane, ensure the load is evenly spread, if crane unavailable adequate manpower is required.
